As a part of a service you will need to inspect the mounts. The purpose of shock mounts are to absorb vibration, and therefore many issues can arise with constant use. Mounts can deteriorate over time, with cracks and overall damage. If the plate jumps or compacts unevenly the mounts may be loose or damaged. On average, shock mounts should be checked every 2 weeks and changed every year.

Here is an example of how to replace the base plate mounts on a Belle PCLX 320 Plate Compactor:

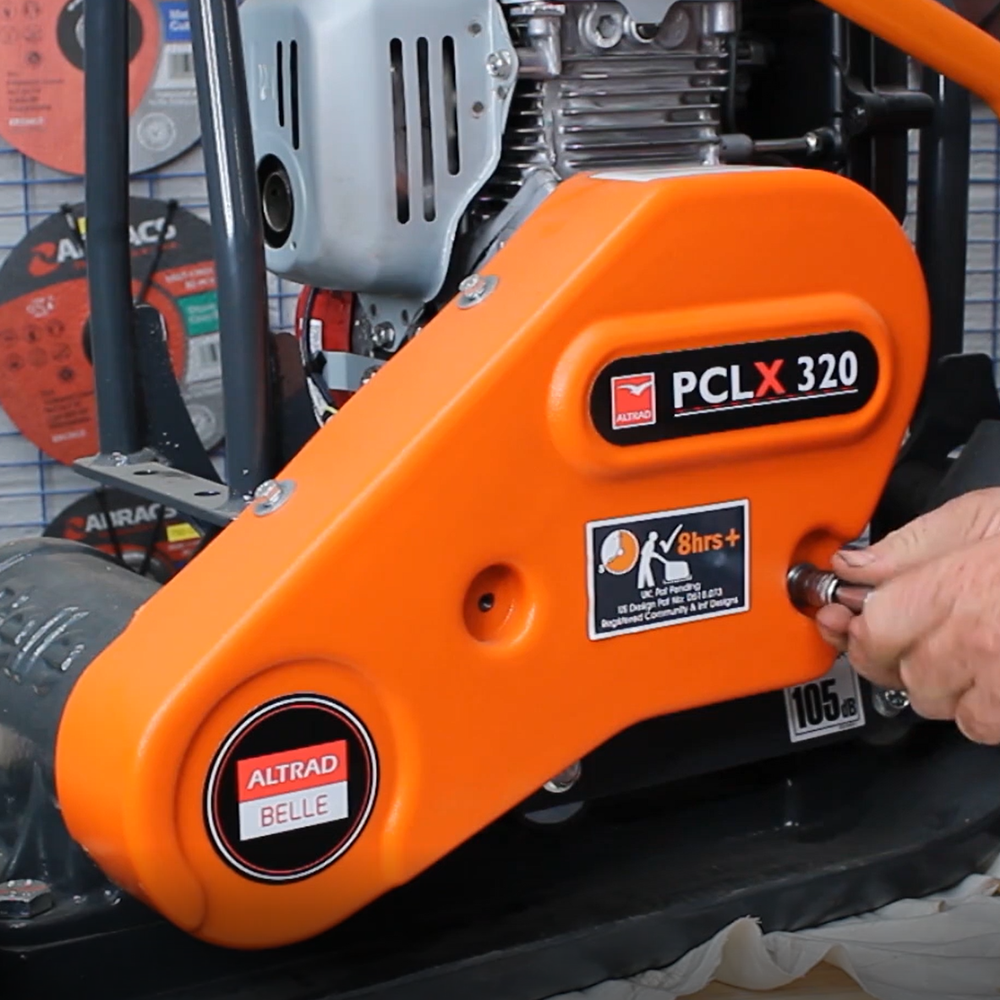

1 - Firstly, remove the cover by unscrewing the 4 bolts and washers using a 10mm socket.

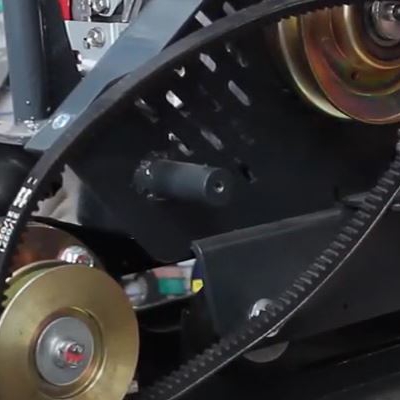

2 - Then, remove the belt from the pulley and the clutch safely.

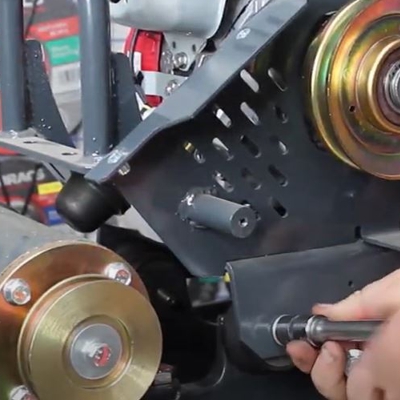

3 - Get your new belt and place it around the pulley. Using the ratchet, feed this back onto the clutch.

4 - Unscrew the vibration mounts.

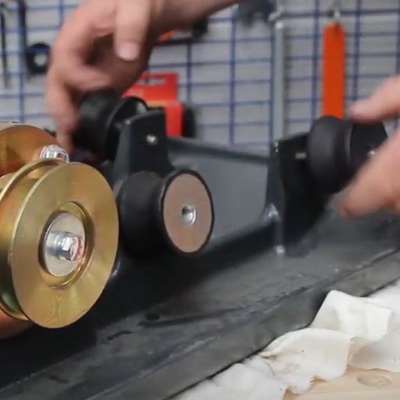

5 - You can now replace these mounts.

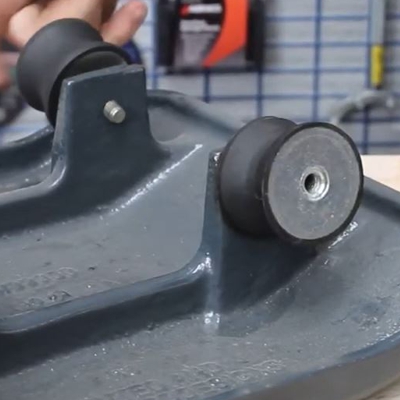

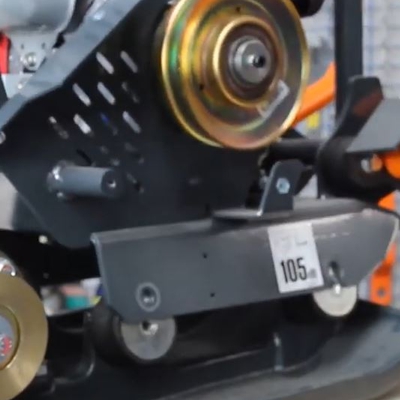

6 - Reattach the bedplate and secure with the 4 bolts.

7 - Place the belt back into position.

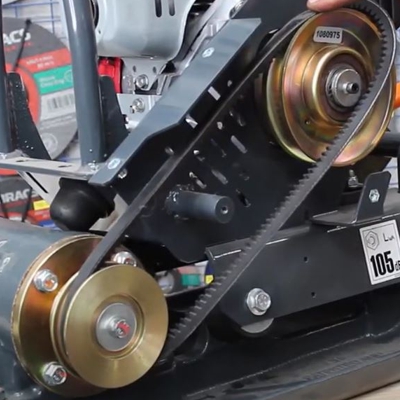

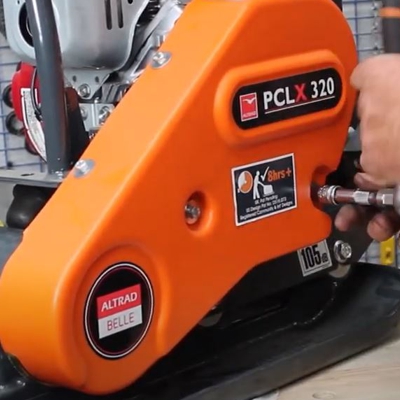

8 - Return the cover back on and secure with the bolts.

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

Step 7

Step 8

Here is an example of how to replace the handle mounts on a Belle PCLX 320 Plate Compactor:

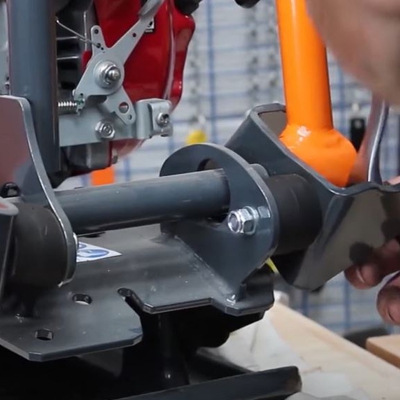

1 - Firstly, loosen the 4 bolts and washers on the outside of the brackets using a 13mm socket and ratchet.

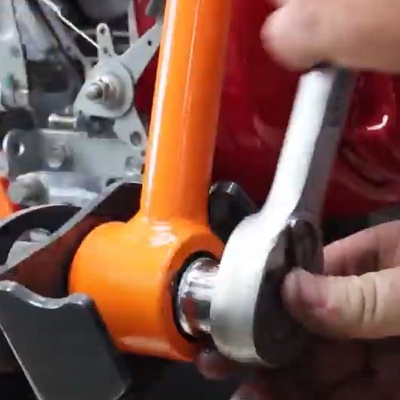

2 - Then, unfasten the 2 larger bolts using a 24mm socket. You can use an adjustable wrench to hold the brackets in place when removing.

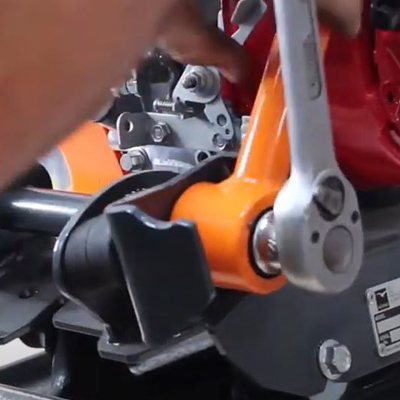

3 - Now, remove the 4 bolts and washers using a 13mm socket.

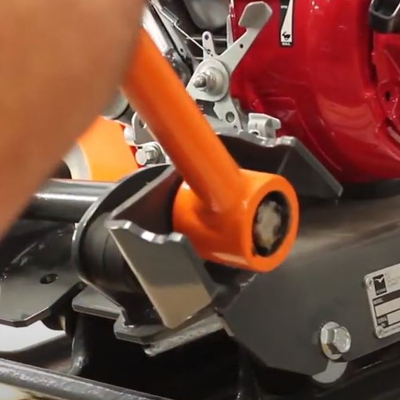

4 - Disconnect the handle and brackets.

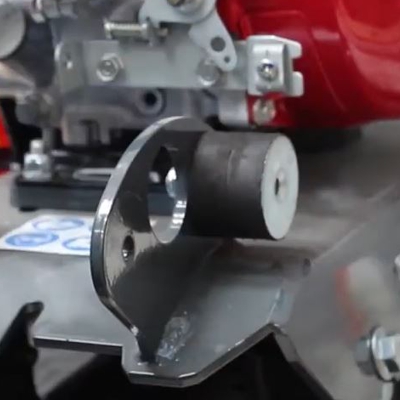

5 - Remove the brackets from the handle and secure with the washers and bolts.

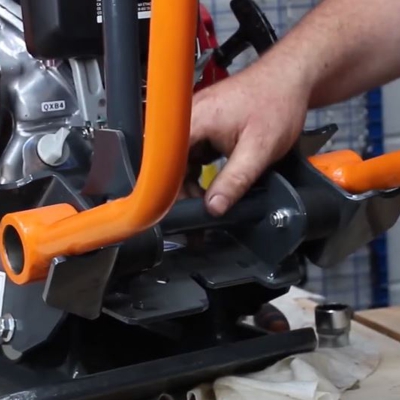

6 - Put the handle back into position.

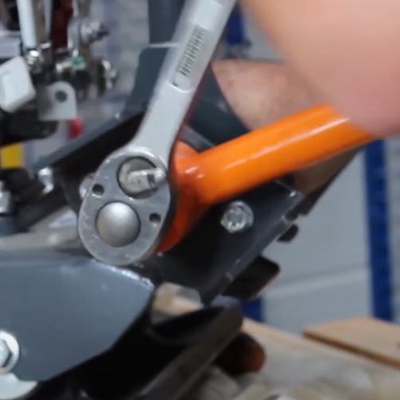

7 - Secure the handle with the bolts until tight. You may need to use the adjustable wrench to help hold the brackets and bar strut when securing the bolts.

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

Step 7

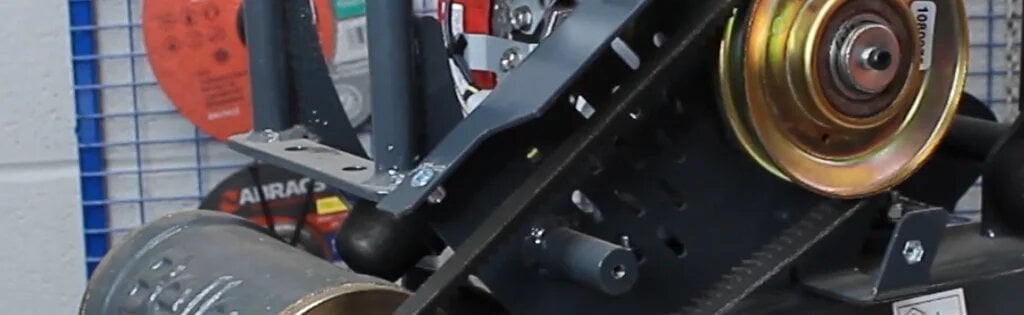

PCLX 320 Belt Available Here

'How To' Related Videos

How to Change the Vibration Mounts on a Belle PCLX 320 Forward Plate Compactor
