How to Change the Base Plate Vibration Mounts on a Belle PCLX 320 Plate Compactor
In this video, we show you how to replace the base plate vibration mounts on a Belle PCLX 320 Plate Compactor.
Health & Safety Warning - Please ensure that you have safely prepared the machine and workspace. If you are unsure about any aspect of the task please seek professional advice.
Transcript

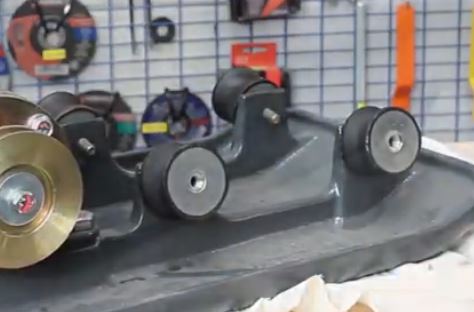

Today we're going to replace the base plate vibration mounts on a Belle PCLX 320 Plate Compactor. Firstly, remove the cover by unscrewing the 4 bolts and washers using a 10mm socket. Then, remove the belt from the pulley and the clutch safely. Now, detach the bedplate by unscrewing the 4 bolts and washers using a 15mm socket. You can now access the vibration mounts. Unscrew the vibration mounts. You can now replace these mounts. Reattach the bedplate and secure with the 4 bolts. Place the belt back into position. Return the cover back on and secure with the bolts That's how you change the base plate vibration mounts on a Belle PCLX 320 Plate Compactor.
Parts
Parts and tools included in the Belle PCLX 320 how-to video.
