In this video, we show you how to change the complete recoil assembly on a Stihl TS420 disc cutter.

Health & Safety Warning - Please ensure that you have safely prepared the machine and workspace. If you are unsure about any aspect of the task please seek professional advice.

Transcript

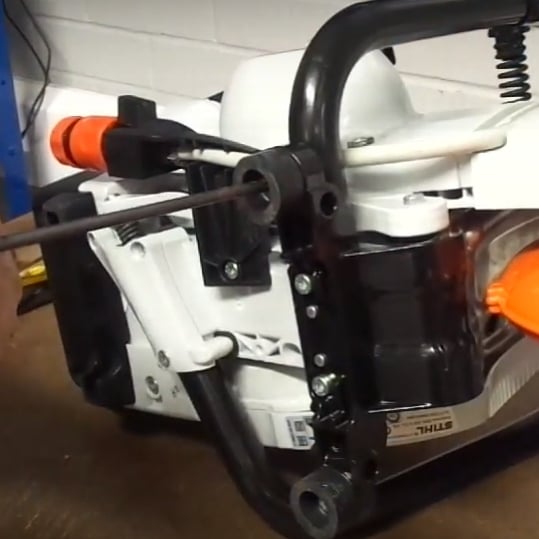

Today, we're going to change the complete recoil starter on a Stihl TS420 cut off saw. Use a torx spanner to remove the screw that secures the water connector from the underside of the machine. This will provide better access to the recoil. Next, use a 19mm Hex Socket Spanner, turning it anti-clockwise to loosen the tension of the belt. Once this is done, use a 13mm Hex Socket Spanner to loosen the three nuts that secure the recoil assembly. Don't worry if you hear a squeak, they can be difficult to remove! Then revisit each screw and completely remove them, freeing the recoil. Locate your new recoil assembly onto the machine, loosely turn each nut a few times. Then return to tighten each nut with the 13mm spanner, be careful not to split the plastic when tightening. Then re-tighten the tension of the belt again using the 19mm Hex Socket Spanner. Don't forget to fix the water connector back into place under the machine using the torx spanner. That's how you change a complete recoil starter on a Stihl TS420. All the parts & tools needed for this task are listed in the description below.

Parts

Parts and tools included in the TS420 disc cutter how-to video.

• Genuine Recoil Assembly - 4238 190 0302
• Non Genuine Recoil Assembly - 410 217
• Genuine M8 Hexagon Nut for Recoil - 9220 260 1100
• Genuine P6 x 19 Torx Screw for Water Kit - 9074 478 4425
• Genuine Torx Wrench/Plug Spanner - 4224 890 3400
• Non Genuine Torx Wrench/Plug Spanner - 410 250
