Description

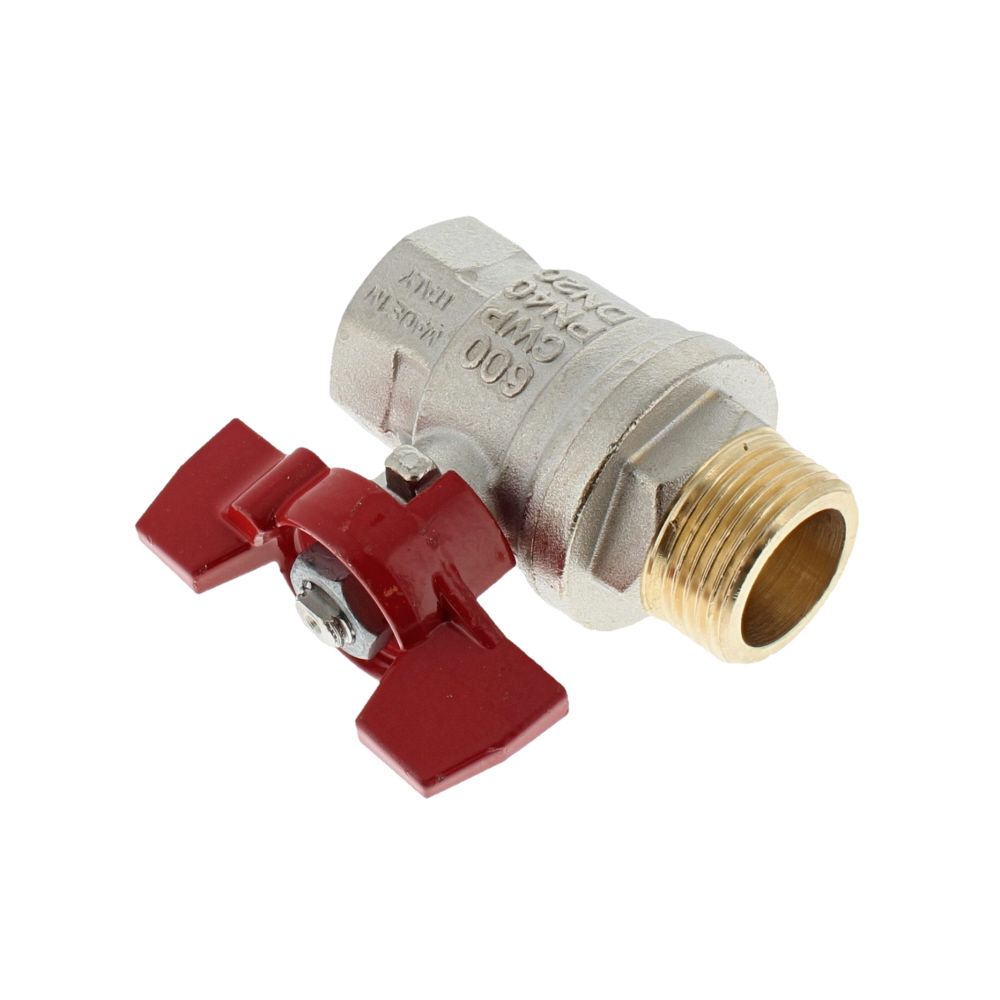

Genuine RS Brass High Pressure Valve 3/4" by RS Components.
Manual ball valves are used to operate shut off valves which control water flow and pressure. These quarter turn brass full bore ball valves have a t-handle and are suitable for high temperature hot water services in domestic, commercial and industrial applications.
Ball valves can be used for air, gases, water, steam, chemicals, petrochemical products, etc. These valves are simple to use, you move the handle by a quarter of a turn to open or close the valve.
Features and Benefits:
Application : Plumbing, Water
-Operating Temperature : -40ﾟC to +170ﾟC
-Operating pressure : PN40 (600 PSI) up to 2’’, PN30 (450 PSI) from 2.1/2 to 4’’; non-shock cold working pressure
-Threads : ISO228 parallel female by female threads
-Port : Full
-Connections options : FxF, MxF, BSPP, NPT
-Stem Configuration : Blowout-proof nickel plated brass stem, with two FPM O-rings at the stem for maximum safety
-Ball seats : Pure PTFE self-lubricating, with flexible-lip design
-Body : Full port to DIN 3357 for maximum flow
-Chrome plated brass ball for longer life
-Silicone-free lubricant on all seals
-Travel stops on body to avoid stress at stem
-Dual sealing system allows valve to be operated in either direction making installation easier
-No metal-to-metal moving parts
-No maintenance ever required
-Handle clearly shows ball position
-Quality : Hot forged sand blasted, external nickel plated brass body and cap sealed with Loctite or equivalent thread sealant; Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Suitable for the Following Applications:
Heating systems, Water treatment, Gas flow control, Liquid flow control
Approvals
WRAS (UK)
GOST-R (Russia)
Expert Conclusion (Russia)
EAC Conforming (Russia)
UkrSepro (Ukraine)
RoHS Compliant
Manual ball valves are used to operate shut off valves which control water flow and pressure. These quarter turn brass full bore ball valves have a t-handle and are suitable for high temperature hot water services in domestic, commercial and industrial applications.
Ball valves can be used for air, gases, water, steam, chemicals, petrochemical products, etc. These valves are simple to use, you move the handle by a quarter of a turn to open or close the valve.
Features and Benefits:
Application : Plumbing, Water
-Operating Temperature : -40ﾟC to +170ﾟC
-Operating pressure : PN40 (600 PSI) up to 2’’, PN30 (450 PSI) from 2.1/2 to 4’’; non-shock cold working pressure
-Threads : ISO228 parallel female by female threads
-Port : Full
-Connections options : FxF, MxF, BSPP, NPT
-Stem Configuration : Blowout-proof nickel plated brass stem, with two FPM O-rings at the stem for maximum safety
-Ball seats : Pure PTFE self-lubricating, with flexible-lip design
-Body : Full port to DIN 3357 for maximum flow
-Chrome plated brass ball for longer life
-Silicone-free lubricant on all seals
-Travel stops on body to avoid stress at stem
-Dual sealing system allows valve to be operated in either direction making installation easier
-No metal-to-metal moving parts
-No maintenance ever required
-Handle clearly shows ball position
-Quality : Hot forged sand blasted, external nickel plated brass body and cap sealed with Loctite or equivalent thread sealant; Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Suitable for the Following Applications:
Heating systems, Water treatment, Gas flow control, Liquid flow control
Approvals
WRAS (UK)
GOST-R (Russia)
Expert Conclusion (Russia)
EAC Conforming (Russia)
UkrSepro (Ukraine)
RoHS Compliant
Product Specifications
| L&S Part No. | 733-5227 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | RS Components |
| OEM No. | 733-5227 |
| Unit of Sale | 1 |
| Machine Type | Hydraulic Attachments, Water Pumps |
