Description
Cylinder & Piston Assembly with New Inlet Plat
Genuine Husqvarna Part
OEM No. 581 47 61-03 (Replaces 506 38 61-71, 520 75 73-04, 581 47 61-01, 581 47 61-02)
Descriptive Name: D51

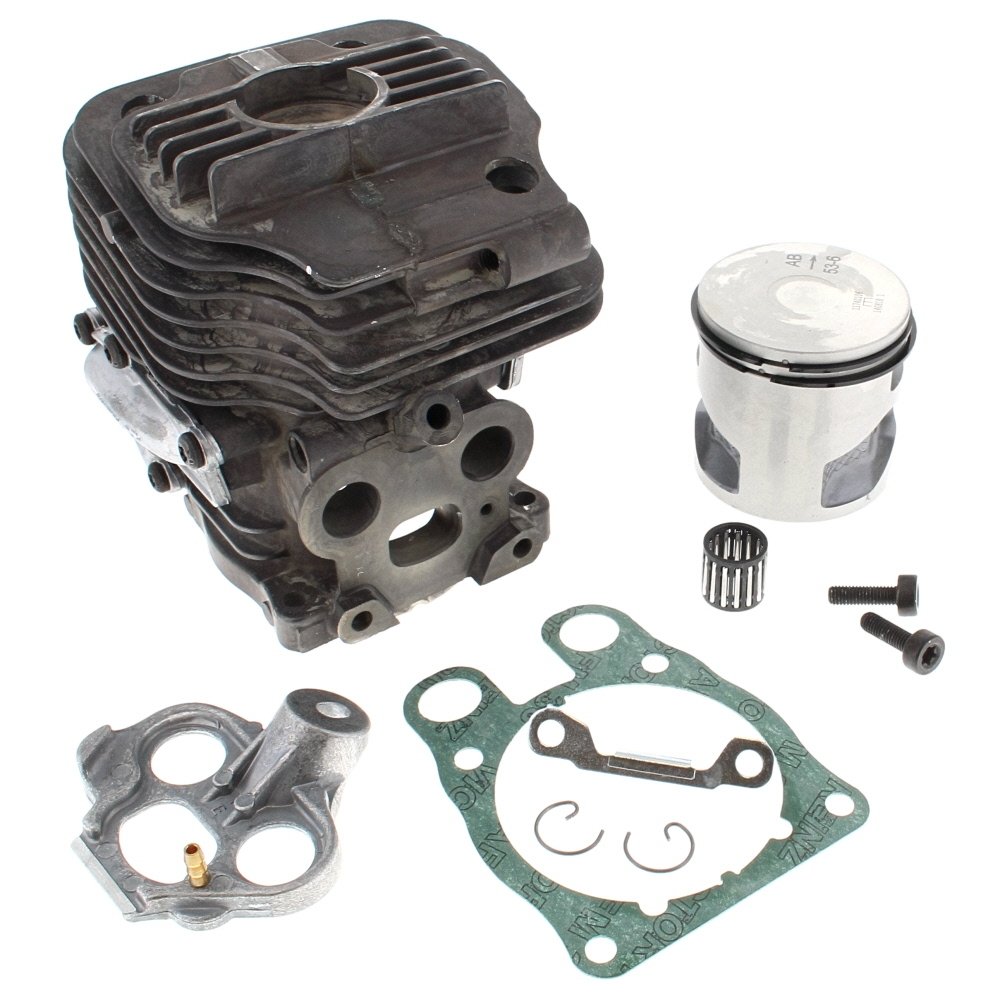

Barrel & piston supplied with: 51mm bore cylinder, piston, rings, clips, pin and new type inlet plate
Suitable for the following applications:
K760 Cut-n-Break, K760, K770, K770 Dry Cut, K770 Oil Guard, K770 Rescue, K770 Smartguard, K770 VAC
Includes the Following Parts (with Diagram Refs.):
ref.8 - Screws ITXSCM - 503 21 53-16.
ref.9 - Bracket - 506 36 88-01.
ref.10 - Inlet Plate D51 - 574 23 18-02.
ref.11 - Gasket - 581 28 53-01.
ref.12 - Piston Assembly - 506 37 24-02.
ref.13 - Needle Bearing 12mm x 15mm x 15mm - 503 25 56-01.
ref.14 - Piston Rings - 503 28 90-47.
ref.15 - Snap Ring - 737 43 12-00.
Genuine Husqvarna Part
OEM No. 581 47 61-03 (Replaces 506 38 61-71, 520 75 73-04, 581 47 61-01, 581 47 61-02)
Descriptive Name: D51
Barrel & piston supplied with: 51mm bore cylinder, piston, rings, clips, pin and new type inlet plate
Suitable for the following applications:
K760 Cut-n-Break, K760, K770, K770 Dry Cut, K770 Oil Guard, K770 Rescue, K770 Smartguard, K770 VAC
Includes the Following Parts (with Diagram Refs.):
ref.8 - Screws ITXSCM - 503 21 53-16.
ref.9 - Bracket - 506 36 88-01.
ref.10 - Inlet Plate D51 - 574 23 18-02.
ref.11 - Gasket - 581 28 53-01.
ref.12 - Piston Assembly - 506 37 24-02.
ref.13 - Needle Bearing 12mm x 15mm x 15mm - 503 25 56-01.
ref.14 - Piston Rings - 503 28 90-47.
ref.15 - Snap Ring - 737 43 12-00.
Product Specifications
| L&S Part No. | 581 47 61 03 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 581476103 |
| Unit of Sale | 1 |
| Applications | Husqvarna K760, K770 |
| Fits Brands | Husqvarna |
| Machine Type | Disc Cutters |
| Fits Models | K770 | K760 | K760 Cut-n-Break | K760 RESCUE | K760 Cut-n-Break II | K760 II | K770 Dry Cut | K770 OilGuard | K770 Rescue | K770 SmartGuard | K770 VAC |
