Description

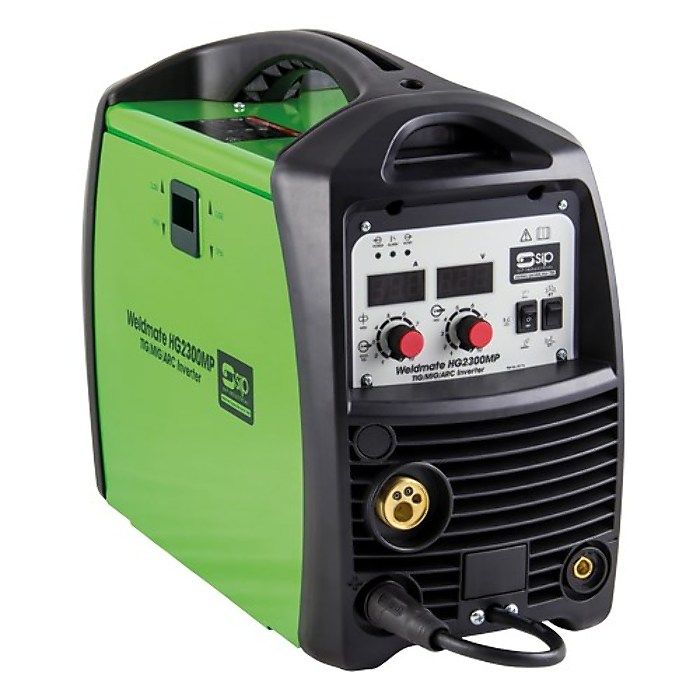

Weldmate HG2300MP MIG/TIG/ARC Inverter Welder
HG2300MP Inverter Welder can take care of most tasks, as it boasts MIG, TIG, and ARC functions. Hi-Tech technology and high 50% duty cycle give it high performance and reliability.
Technical Description:
230v (16amp) input supply
MIG, TIG, and ARC triple function
Infinitely variable weld output settings
30amp - 200amp MIG output current
20amp - 200amp TIG output current
30amp - 170amp ARC output current
High 50% duty cycle on all processes
Reliable performance in gas/gasless
Easy-to-read dual digital displays
0.6 - 1.0mm wire size tolerance
1.6 - 4.0mm max. electrode size
Rugged lightweight construction
Built-in IGBT inverter technology
Extra-low current performance
Process MIG
Output Volts 15.5v to 24.0v
Output Current 30 - 200amps
Duty Cycle 200amps @ 50%
Process TIG
Output Volts 10.8v to 18.0v
Output Current 20 - 200amps
Duty Cycle 200amps @ 50%
Process MMA
Output Volts 21.2v to 26.8v
Output Current 30 - 170amps
Duty Cycle 170amps @ 50%
Wire Size 0.6mm - 1.0mm
Electrode Dia 1.6mm - 4.0mm
Insulation Class H
Protection IP21S
Gross Weight 14.5kg
Packaged Dimensions 585 x 330 x 485mm
Additional 2 year warranty
HG2300MP Inverter Welder can take care of most tasks, as it boasts MIG, TIG, and ARC functions. Hi-Tech technology and high 50% duty cycle give it high performance and reliability.
Technical Description:
230v (16amp) input supply
MIG, TIG, and ARC triple function
Infinitely variable weld output settings
30amp - 200amp MIG output current
20amp - 200amp TIG output current
30amp - 170amp ARC output current
High 50% duty cycle on all processes
Reliable performance in gas/gasless
Easy-to-read dual digital displays
0.6 - 1.0mm wire size tolerance
1.6 - 4.0mm max. electrode size
Rugged lightweight construction
Built-in IGBT inverter technology
Extra-low current performance
Process MIG
Output Volts 15.5v to 24.0v
Output Current 30 - 200amps
Duty Cycle 200amps @ 50%
Process TIG
Output Volts 10.8v to 18.0v
Output Current 20 - 200amps
Duty Cycle 200amps @ 50%
Process MMA
Output Volts 21.2v to 26.8v
Output Current 30 - 170amps
Duty Cycle 170amps @ 50%
Wire Size 0.6mm - 1.0mm
Electrode Dia 1.6mm - 4.0mm
Insulation Class H
Protection IP21S
Gross Weight 14.5kg
Packaged Dimensions 585 x 330 x 485mm
Additional 2 year warranty
Product Specifications
| L&S Part No. | 845 5773 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | SIP Industrial Products |
| OEM No. | 05773 |
| Unit of Sale | 1 |
| Size | 585 x 330 x 485mm |
