Description

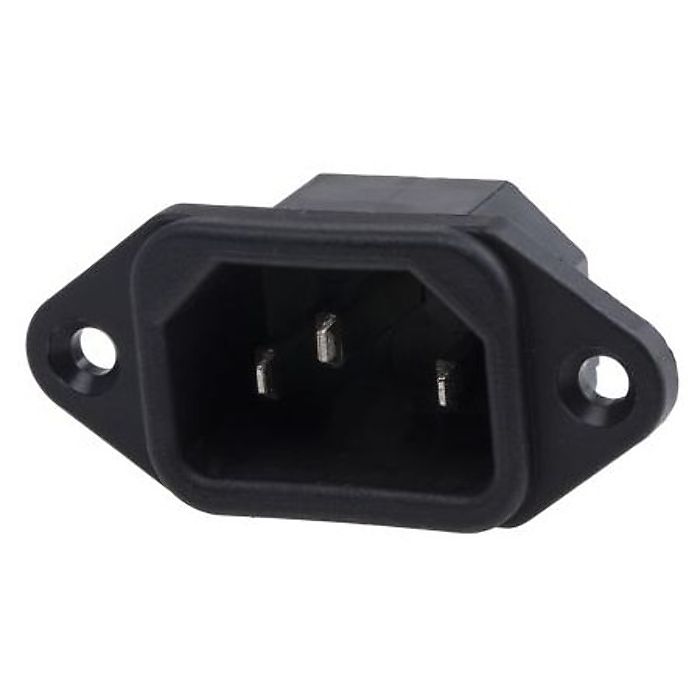

"Kettle" Type 10 Amp C14 IEC Flange Fixing Plug
10 Amp C14 flange mount panel plug with 6.3mm spade terminals, maximum panel thickness 2mm. Suitable for many mains power input applications.

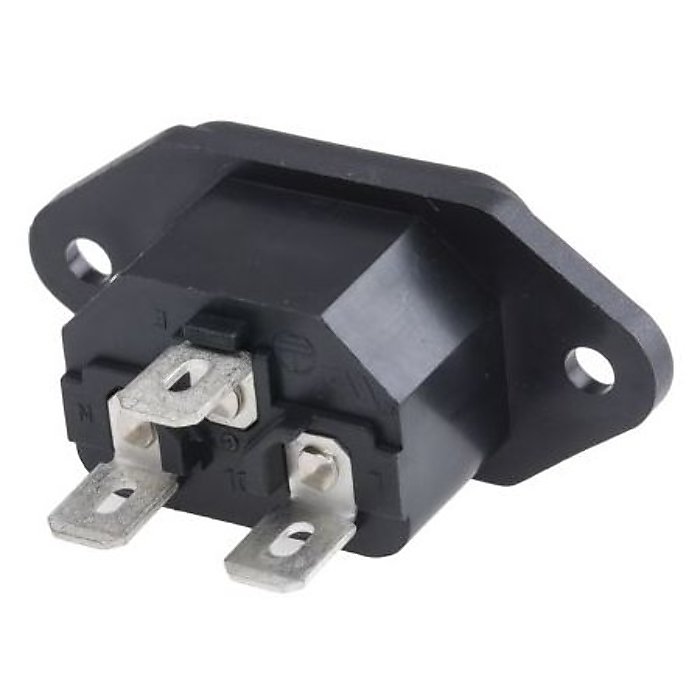

250V rated, connection by 6.3mm (1/4 in) receptacles
Rated at 10 Amps
Resistance withstand voltage 2000 Vac for 1 minute
Depth: 33mm
Fixing Hole Diameter: 3.5mm
Has a contact resistance of <10mΩ, and an insulation resistance of >103MΩ. The operating temperature is -40°C to +70°C
Product Specifications
| L&S Part No. | 200 990 |
|---|---|
| Unit of Sale | 1 |
| Size | Depth: 33mm, Fixing Hole Diameter: 3.5mm |
