Description

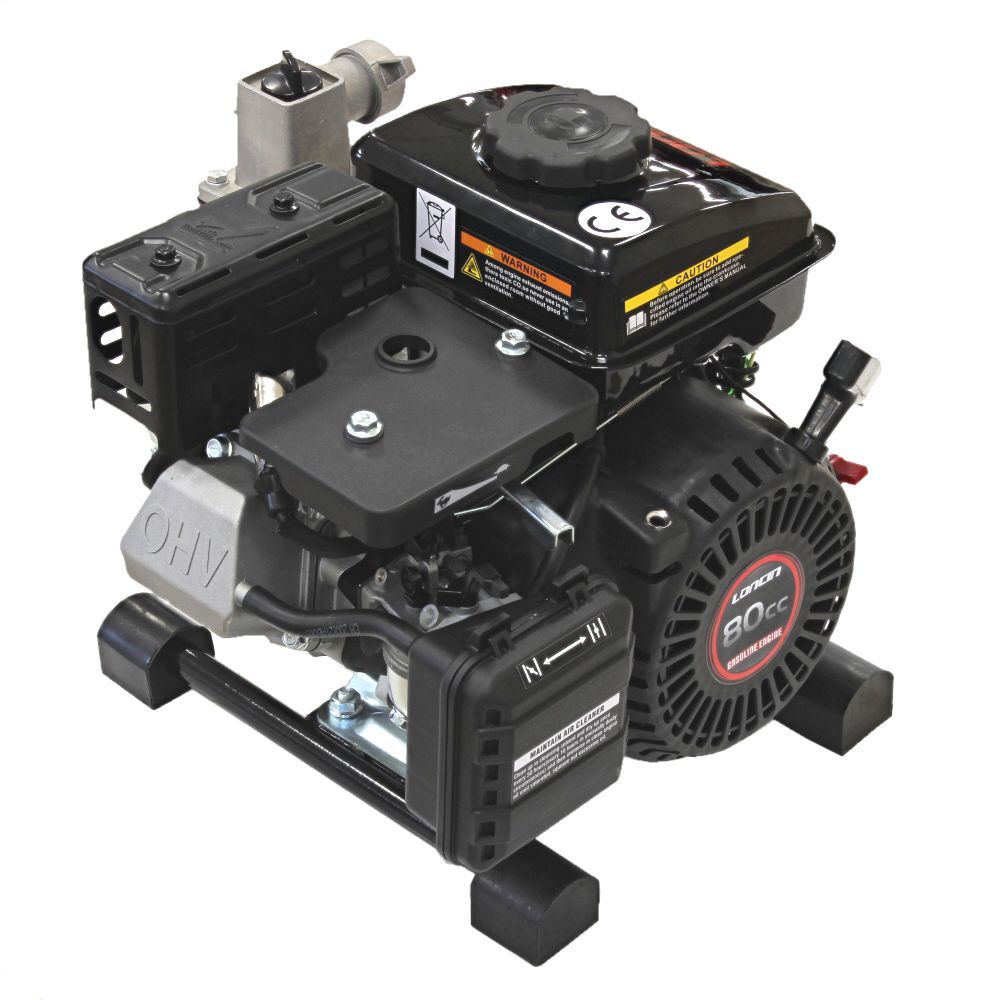

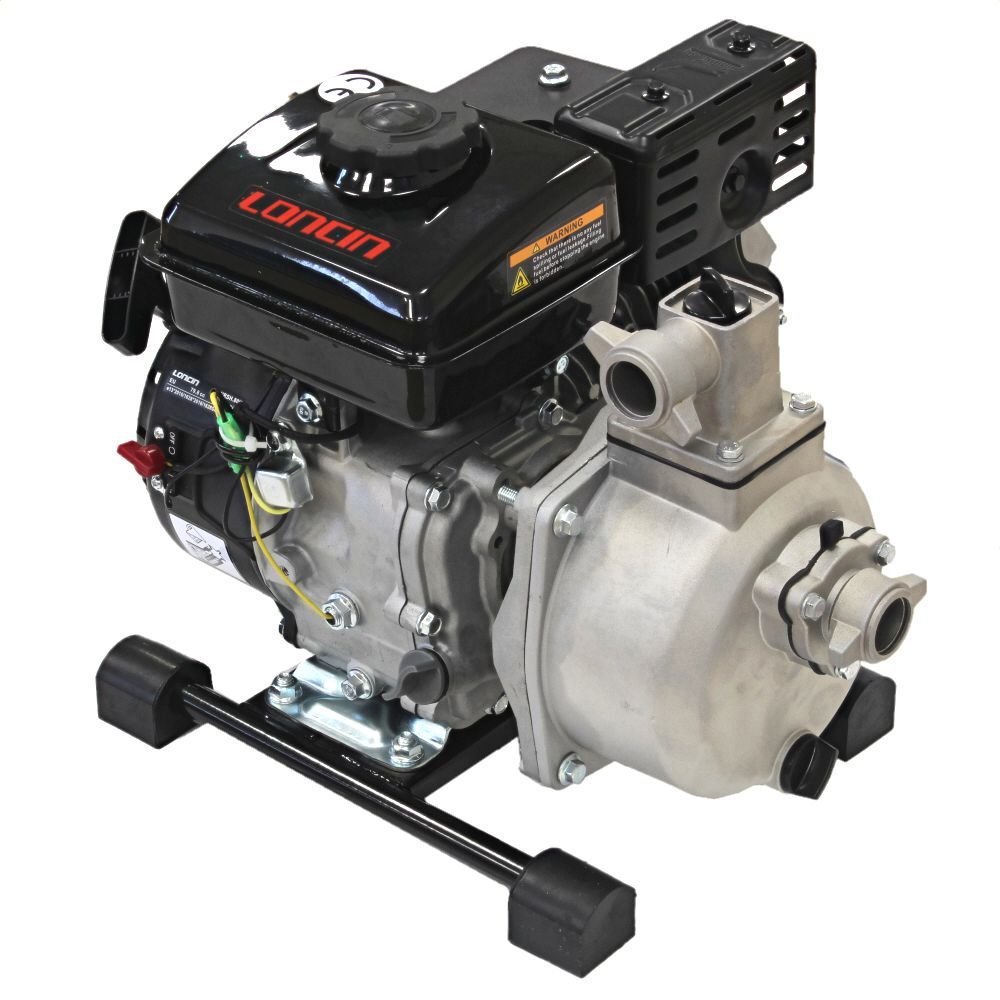

Adopting Loncin’s easy-to-start, reliable and durable OHV LC152F engine
The pump body is made of light-weight but strong aluminum alloy.
Cast iron volute and impeller
Adopting high-quality ceramic mechanical sealing, very crucial to water pump
Low engine oil protection device

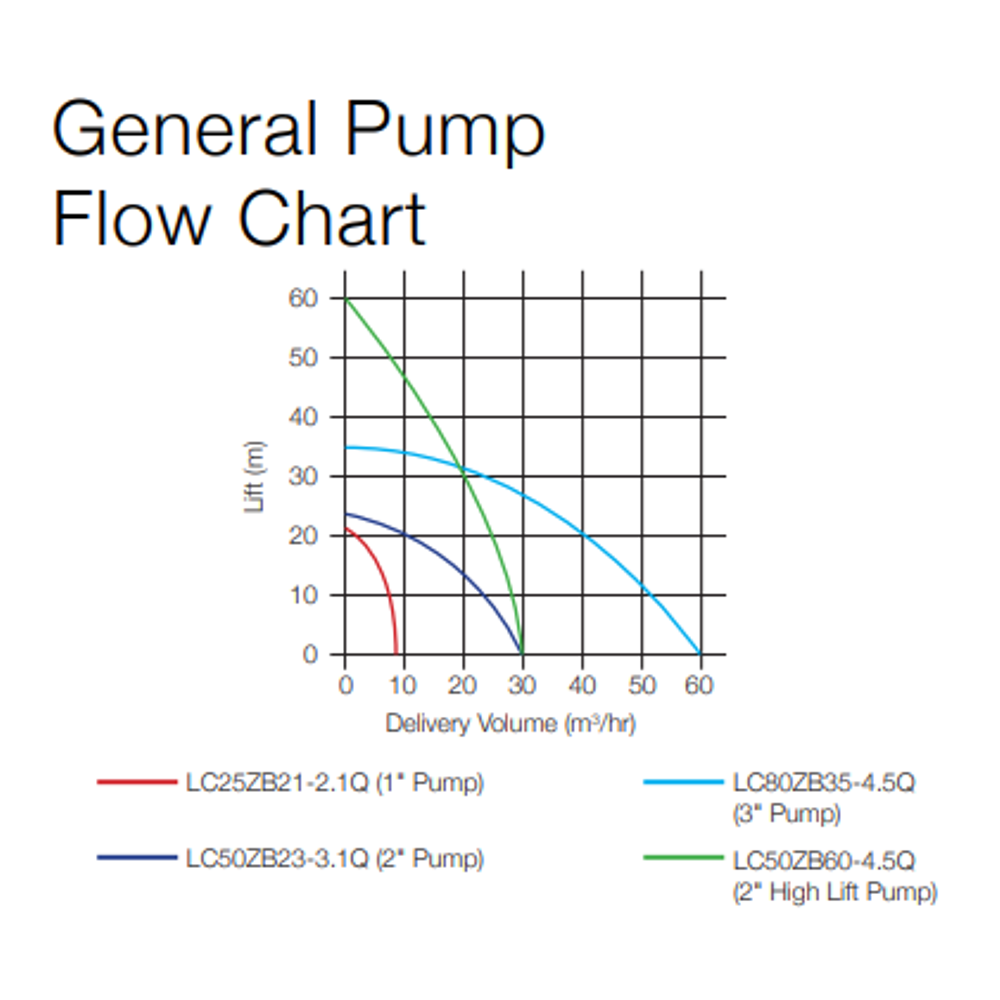

Max. pump lift of 21m, Max. suction of 6m
Model LC152F
Displacement 80cc
Bore×Stroke 52mm×46mm（2.05″×1.81″）
Compression ratio 5.6∶1
Net power 1.2kW/3600rpm
Rated speed 3600r/min
Oil capacity 0.45 L（0.12gal）
Fuel tank capacity 1.4 L(0.37gal)
Pump type Centrifugal,self priming
Dia.of discharge port 25 mm (1 ″)
Dia.of suction port 25mm (1 ″)
Max suction 6 m（20ft）
Max lift 21 m（69ft）
Max delivery voulme 8 m3/hr（35gal/min）
Dimension 380×300×370（15″×11.8″×14.6″）
Net weight 13 Kg（28.7lb）
The pump body is made of light-weight but strong aluminum alloy.
Cast iron volute and impeller
Adopting high-quality ceramic mechanical sealing, very crucial to water pump
Low engine oil protection device
Max. pump lift of 21m, Max. suction of 6m
Model LC152F
Displacement 80cc
Bore×Stroke 52mm×46mm（2.05″×1.81″）
Compression ratio 5.6∶1
Net power 1.2kW/3600rpm
Rated speed 3600r/min
Oil capacity 0.45 L（0.12gal）
Fuel tank capacity 1.4 L(0.37gal)
Pump type Centrifugal,self priming
Dia.of discharge port 25 mm (1 ″)
Dia.of suction port 25mm (1 ″)
Max suction 6 m（20ft）
Max lift 21 m（69ft）
Max delivery voulme 8 m3/hr（35gal/min）
Dimension 380×300×370（15″×11.8″×14.6″）
Net weight 13 Kg（28.7lb）
Product Specifications
| L&S Part No. | 252 221 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Loncin |
| OEM No. | LC25ZB21-1.2Q |
| Unit of Sale | 1 |
| Size | 1" Inlet/Outlet |
