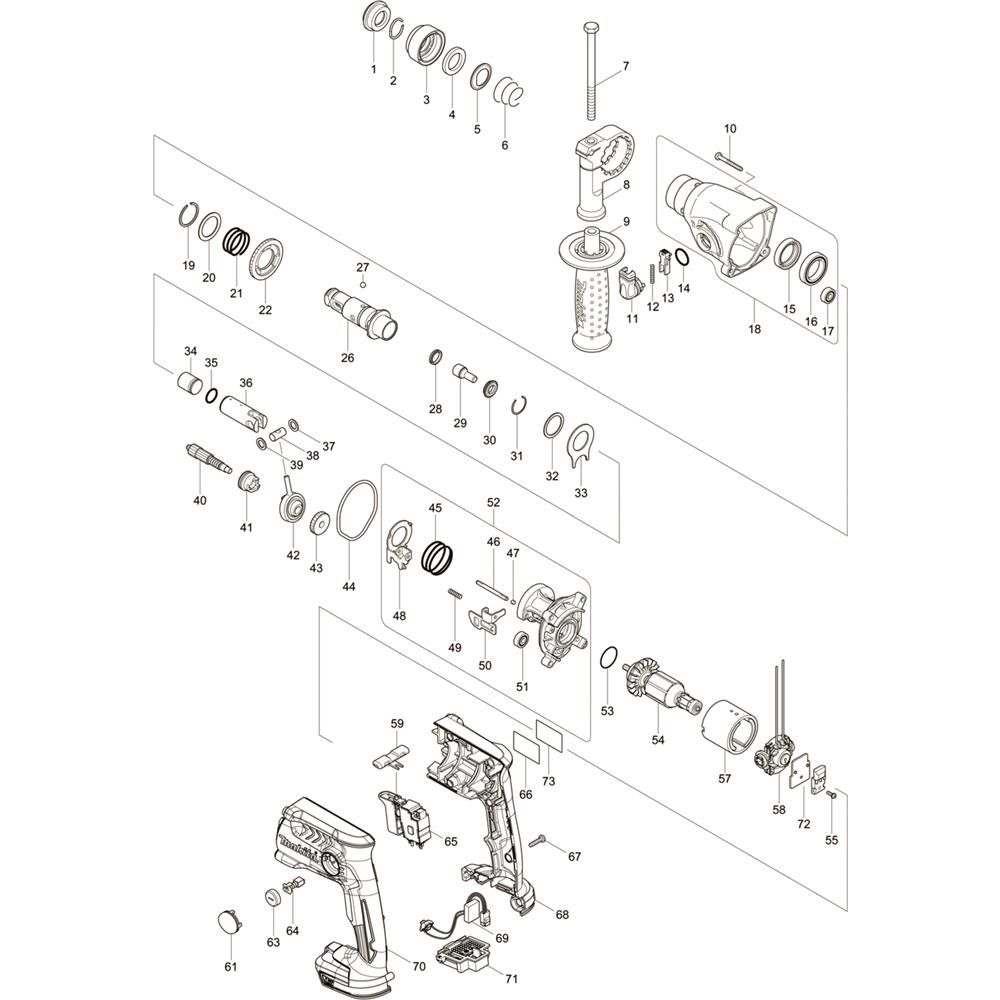

Main Assembly for Makita DHR164RFJ Cordless Rotary Hammer Drills

Ref. Img. Part No. Details
  1 Battery Cover Bdg800/Dtw251 450128-8
Battery Cover Bdg800/Dtw251
In stock
£0.77 £0.64

  2 Stacking Case Type 3 210Mm 821551-8
Stacking Case Type 3 210Mm
Out of Stock
£65.83 £54.86

  3 Latch For Stacking Case Macpa 453974-8
Latch For Stacking Case Macpa
In stock
£2.03 £1.69

  4 Stopper Pole Dhr164/Dhr165 415486-9
Stopper Pole Dhr164/Dhr165
Out of Stock
£1.15 £0.96

  5 Inner Tray Dhr164/165 838109-6
Inner Tray Dhr164/165
Out of Stock
£10.07 £8.39

  1 Cap 35 Dhr164/Dhr165/2440/245 286263-4
Cap 35 Dhr164/Dhr165/2440/245
In stock
£0.97 £0.81

  2 Ring Spring 19 Dhr164/165,Hr 233940-9
Ring Spring 19 Dhr164/165,Hr
In stock
£0.48 £0.40

  3 Chuck Cover Dhr164/Dhr165 419220-9
Chuck Cover Dhr164/Dhr165
Out of Stock
£1.66 £1.38

  4 Ring 21 Dhr164/Dhr165/Hr1830 257241-1
Ring 21 Dhr164/Dhr165/Hr1830
In stock
£1.46 £1.22

  5 Guide Washer Dhr164/Dhr165 345187-4
Guide Washer Dhr164/Dhr165
In stock
£0.97 £0.81

  6 Conical Comp Spring 21-29 Dhr 233916-6
Conical Comp Spring 21-29 Dhr
In stock
£0.48 £0.40

  8 Grip Base Hr1830/Dhr164/165 417911-6
Grip Base Hr1830/Dhr164/165
Out of Stock
£1.96 £1.63

  9 Grip 36 Comp Bhr262/Dhr165/165 158057-6
Grip 36 Comp Bhr262/Dhr165/165
In stock
£5.90 £4.92

  10 Pt Screw 4X35 Vc3211M/Bss501 266053-1
Pt Screw 4X35 Vc3211M/Bss501
Out of Stock
£0.65 £0.54

  11 Change Lever Comp Dhr164/165 162242-5
Change Lever Comp Dhr164/165
Out of Stock
£1.15 £0.96

  12 Compression Spring 3 Dhr164 233459-8
Compression Spring 3 Dhr164
Out of Stock
£0.48 £0.40

  13 Lock Button Dhr164/Dhr165 455413-4
Lock Button Dhr164/Dhr165
Out of Stock
£5.10 £4.25

  14 O Ring 17 Dhr164/Dhr165/2440 213278-8
O Ring 17 Dhr164/Dhr165/2440
In stock
£0.48 £0.40

  15 O Ring 25 Dhr164/165/Hr1830 213535-4
O Ring 25 Dhr164/165/Hr1830
Out of Stock
£1.66 £1.38

  16 Ball Bearing Vc3211M/Bhr162/ 211375-4
Ball Bearing Vc3211M/Bhr162/
Out of Stock
£17.36 £14.47

  18 Gear Housing Comp Bhr162/Bhr1 154840-9
Gear Housing Comp Bhr162/Bhr1
Out of Stock
£19.43 £16.19

  19 Retaining Ext Wr-25 Hr1840/Dhr 961135-1
Retaining Ext Wr-25 Hr1840/Dhr
Out of Stock
£0.82 £0.68

  20 Flat Washer 25 Dhr164/Hr1840 267304-5
Flat Washer 25 Dhr164/Hr1840
Out of Stock
£0.66 £0.55

  21 Compression Spring 25 Bhr162 233457-2
Compression Spring 25 Bhr162
Out of Stock
£1.15 £0.96

  22 Spur Gear 46 Dhr164/165 331707-0
Spur Gear 46 Dhr164/165
Out of Stock
£10.61 £8.84

  26 Tool Holder Comp Dhr164/Dhr16 154843-3
Tool Holder Comp Dhr164/Dhr16
Out of Stock
£18.05 £15.04

  27 Steel Ball 7.0 M3601/M8701 216022-2
Steel Ball 7.0 M3601/M8701
In stock
£0.48 £0.40

  28 X Ring 13 Hr1830/Dhr164/Dhr16 213183-9
X Ring 13 Hr1830/Dhr164/Dhr16
Out of Stock
£1.25 £1.04

  29 Impact Boltdhr164/Dhr165 324611-0
Impact Boltdhr164/Dhr165
Out of Stock
£2.10 £1.75

  30 Ring 11 Dhr164/165//Hr1830 257275-4
Ring 11 Dhr164/165//Hr1830
Out of Stock
£2.26 £1.88

  31 Ring Spring 22 Dhr164/Dhr165 233942-5
Ring Spring 22 Dhr164/Dhr165
Out of Stock
£0.94 £0.78

  32 Flat Washer 24 Hr1840/Hr1841F 267175-0
Flat Washer 24 Hr1840/Hr1841F
Out of Stock
£0.79 £0.66

  33 Joint Plate Dhr164/Dhr165 345681-6
Joint Plate Dhr164/Dhr165
Out of Stock
£0.66 £0.55

  34 Striker Dhr164/Dhr165/Hr1830 324613-6
Striker Dhr164/Dhr165/Hr1830
Out of Stock
£1.66 £1.38

  35 O Ring 14 Dhr164/165/Hr1830 213182-1
O Ring 14 Dhr164/165/Hr1830
Out of Stock
£1.15 £0.96

  36 Piston Cylinder Dhr164/Dhr165 331708-8
Piston Cylinder Dhr164/Dhr165
Out of Stock
£11.86 £9.88

  38 Piston Jointdhr164/Dhr165 324612-8
Piston Jointdhr164/Dhr165
Out of Stock
£1.25 £1.04

  39 Blue Washer 9 267130-2
Blue Washer 9
Out of Stock
£0.48 £0.40

  40 Spur Gear 10 Dhr164/Dhr165 227152-4
Spur Gear 10 Dhr164/Dhr165
Out of Stock
£5.93 £4.94

  41 Clutch Cam Dhr164/Dhr165 331706-2
Clutch Cam Dhr164/Dhr165
Out of Stock
£4.14 £3.45

  42 Swash Bearing 9 Dhr164/Dhr165 219019-0
Swash Bearing 9 Dhr164/Dhr165
Out of Stock
£41.89 £34.91

  43 Helical Gear 22 Dhr164/165 226623-8
Helical Gear 22 Dhr164/165
Out of Stock
£12.13 £10.11

  44 Seal Ring Hr1830/Dhr164/165 423346-1
Seal Ring Hr1830/Dhr164/165
Out of Stock
£0.66 £0.55

  45 Compression Spring 32 Bhr162 233458-0
Compression Spring 32 Bhr162
Out of Stock
£0.66 £0.55

  46 Pin 4 Dhr164/165//Hr1830 268147-8
Pin 4 Dhr164/165//Hr1830
Out of Stock
£1.15 £0.96

  47 Felt 4X3 Dhr164/Dhr165/Hr1830 443123-5
Felt 4X3 Dhr164/Dhr165/Hr1830
Out of Stock
£0.48 £0.40

  48 Change Plated Dhr164/Dhr165 345645-0
Change Plated Dhr164/Dhr165
Out of Stock
£6.06 £5.05

  49 Compression Spring 3 Dhr164 233460-3
Compression Spring 3 Dhr164
Out of Stock
£0.48 £0.40

  50 Stopper Plate Dhr164/Dhr165 345654-9
Stopper Plate Dhr164/Dhr165
Out of Stock
£3.59 £2.99

  51 Ball Bearing 606Zz Hr2410/Dh 211012-0
Ball Bearing 606Zz Hr2410/Dh
In stock
£11.99 £9.99

  52 Inner Housing Comp Dhr164/165 154841-7
Inner Housing Comp Dhr164/165
Out of Stock
£20.94 £17.45

  53 O Ring 24 Hr2430/Dhr164/Dhr16 213953-6
O Ring 24 Hr2430/Dhr164/Dhr16
Out of Stock
£1.10 £0.92

  54 Armature Bhr162/Dhr164 619182-3
Armature Bhr162/Dhr164
Out of Stock
£52.78 £43.98

  55 Pan Hd Screw M3X10 911011-9
Pan Hd Screw M3X10
In stock
£0.48 £0.40

  57 Yoke Unit Dhr164/165/Bhr162 638446-6
Yoke Unit Dhr164/165/Bhr162
Out of Stock
£7.16 £5.97

  58 Insulation Terminal Ft1.25-M3 654037-5
Insulation Terminal Ft1.25-M3
Out of Stock
£0.65 £0.54

  58 Endbell Complete Dhr164/Dhr16 632D97-1
Endbell Complete Dhr164/Dhr16
Out of Stock
£4.82 £4.02

  59 F/R Change Lever Dhr164/165 419457-8
F/R Change Lever Dhr164/165
Out of Stock
£2.26 £1.88

  61 Holder Cap Cover Dhr164/165 424128-4
Holder Cap Cover Dhr164/165
In stock
£0.65 £0.54

  63 Holder Cap Dub361/Bub360/Bdg 643929-3
Holder Cap Dub361/Bub360/Bdg
In stock
£0.82 £0.68

  64 Carbon Brush Set Cb-430 191971-3
Carbon Brush Set Cb-430
In stock
£4.82 £4.02

  65 Switch Unit Dhr164/Dhr165 632D93-9
Switch Unit Dhr164/Dhr165
Out of Stock
£37.21 £31.01

  66 Name Plate Dhr164 850K29-0
Name Plate Dhr164
Out of Stock
£0.48 £0.40

  67 Pt Screw 4X18 Uh4570/55/65/55 265995-6
Pt Screw 4X18 Uh4570/55/65/55
In stock
£0.48 £0.40

  69 Light Circuit Dhr164 620366-8
Light Circuit Dhr164
Out of Stock
£7.86 £6.55

  70 Housing Set Dhr164 183A24-8
Housing Set Dhr164
Out of Stock
£17.09 £14.24

  70 Rubber Pin 6 Dur/Dhr/Dtw/Dg 263005-3
Rubber Pin 6 Dur/Dhr/Dtw/Dg
In stock
£0.48 £0.40

  71 Terminal 14.4V Models Only 643867-9
Terminal 14.4V Models Only
Out of Stock
£4.96 £4.13

  72 Heat Sink 6503Dw Dhr164/Dhr16 689098-6
Heat Sink 6503Dw Dhr164/Dhr16
Out of Stock
£1.15 £0.96

  73 Label/Clear Dhr164165 805F02-5
Label/Clear Dhr164165
Out of Stock
£0.48 £0.40


Description

Main Assembly for Makita DHR164RFJ Cordless Rotary Hammer Drills.
Genuine and Non-Genuine Parts Available.
