Description

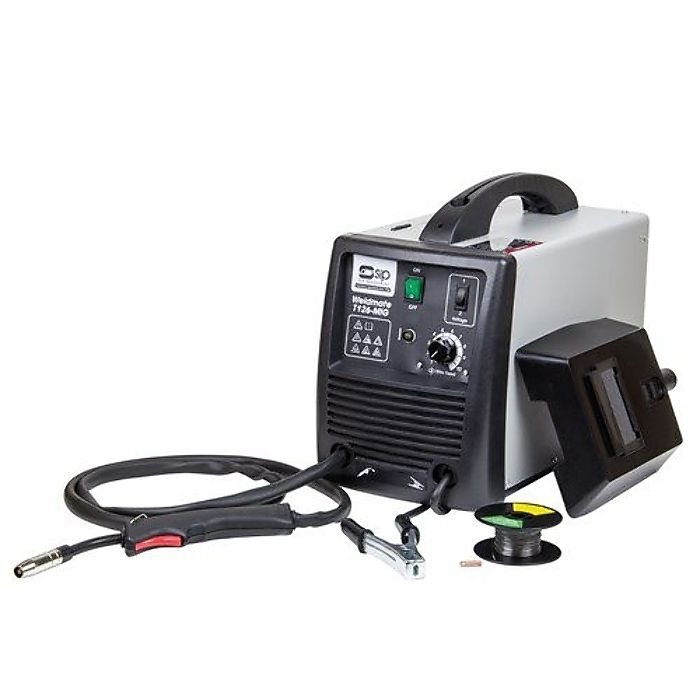

MIG Gasless Transformer Welder
230v (13amp) supply
17.0v - 18.5v circuit voltage
0.7kg and 5.0kg wire spool sizes
2 complete output power settings
60amps - 125amps (peak) current range
0.8mm - 0.9mm Flux-cored wire diameter
Turbo fan-cooled for increased performance
1.2mm - 4.0mm weld thickness (mild steel)
Ready to use in gasless mode
Thermal overload protection
Supplied with the following:
1.8m MIG torch, Earth cable/clamp
Handheld shield, contact tip, 0.2kg Flux
Chipping hammer and brush
Construction SWITCHED TRANSFORMER
Input Supply 230v (13amp)
Output Current 60amps - 90amps
Peak Current 125amps
Welding Volt Range 17.0v - 18.5v
Welding Volt Steps 2 volt steps
Duty Cycle 90amps @ 20%
Max. Wire Speed 14 metres/min
Wire Size 0.8mm - 0.9mm
Insulation Class H
Protection IP21S
Gross Weight 16.0kg
Packaged Dimensions 360 x 225 x 410mm
Additional Gasless
230v (13amp) supply
17.0v - 18.5v circuit voltage
0.7kg and 5.0kg wire spool sizes
2 complete output power settings
60amps - 125amps (peak) current range
0.8mm - 0.9mm Flux-cored wire diameter
Turbo fan-cooled for increased performance
1.2mm - 4.0mm weld thickness (mild steel)
Ready to use in gasless mode
Thermal overload protection
Supplied with the following:
1.8m MIG torch, Earth cable/clamp
Handheld shield, contact tip, 0.2kg Flux
Chipping hammer and brush
Construction SWITCHED TRANSFORMER
Input Supply 230v (13amp)
Output Current 60amps - 90amps
Peak Current 125amps
Welding Volt Range 17.0v - 18.5v
Welding Volt Steps 2 volt steps
Duty Cycle 90amps @ 20%
Max. Wire Speed 14 metres/min
Wire Size 0.8mm - 0.9mm
Insulation Class H
Protection IP21S
Gross Weight 16.0kg
Packaged Dimensions 360 x 225 x 410mm
Additional Gasless
Product Specifications
| L&S Part No. | 845 5710 |
|---|---|
| Manufacturer | SIP Industrial Products |
| OEM No. | 05710 |
| Unit of Sale | 1 |
