Description

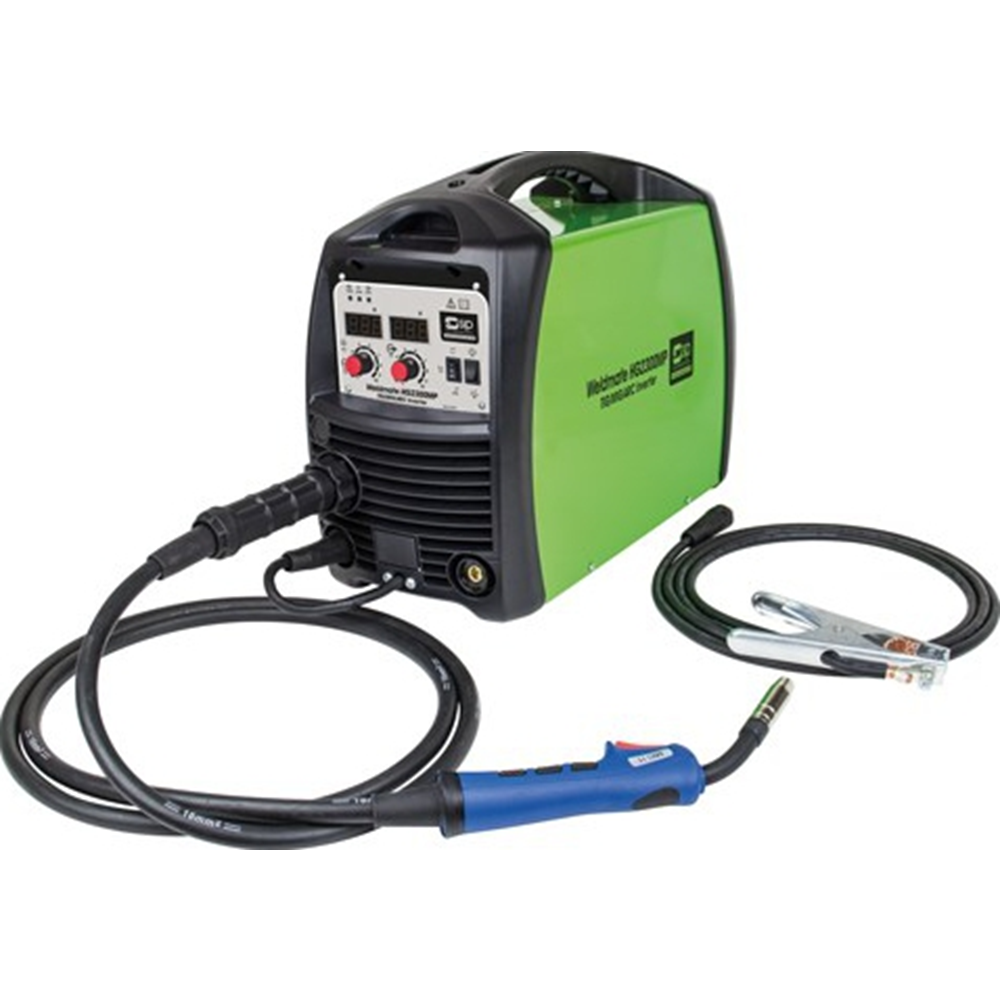

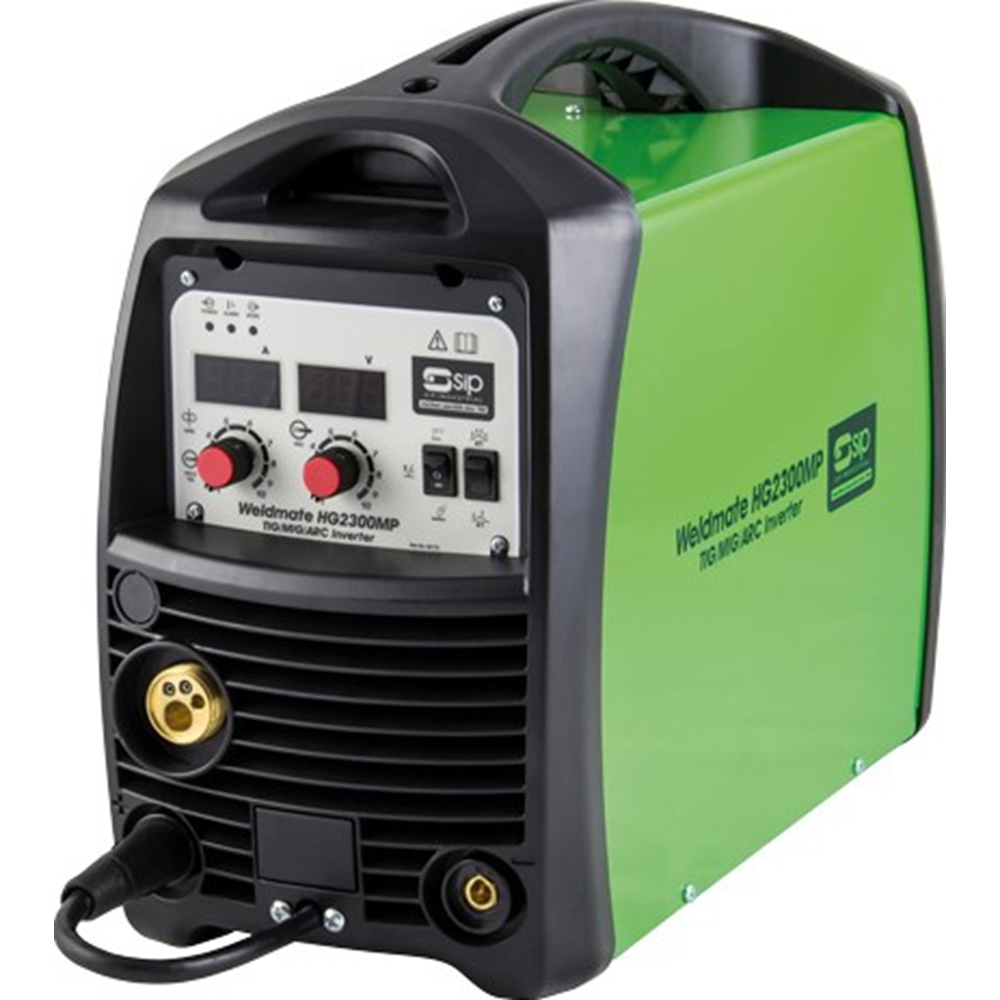

SIP HG2300MP MIG/ARC/TIG Inverter Welder
Inverter Welder can take care of most tasks, as it boasts MIG, TIG, and ARC functions.
Hi-Tech technology and high 50% duty cycle give it high performance and reliability.
230v (16amp) input supply
MIG, TIG, and ARC triple function
Infinitely variable weld output settings
30amp - 200amp MIG output current
20amp - 200amp TIG output current
30amp - 170amp ARC output current
High 50% duty cycle on all processes
Reliable performance in gas/gasless

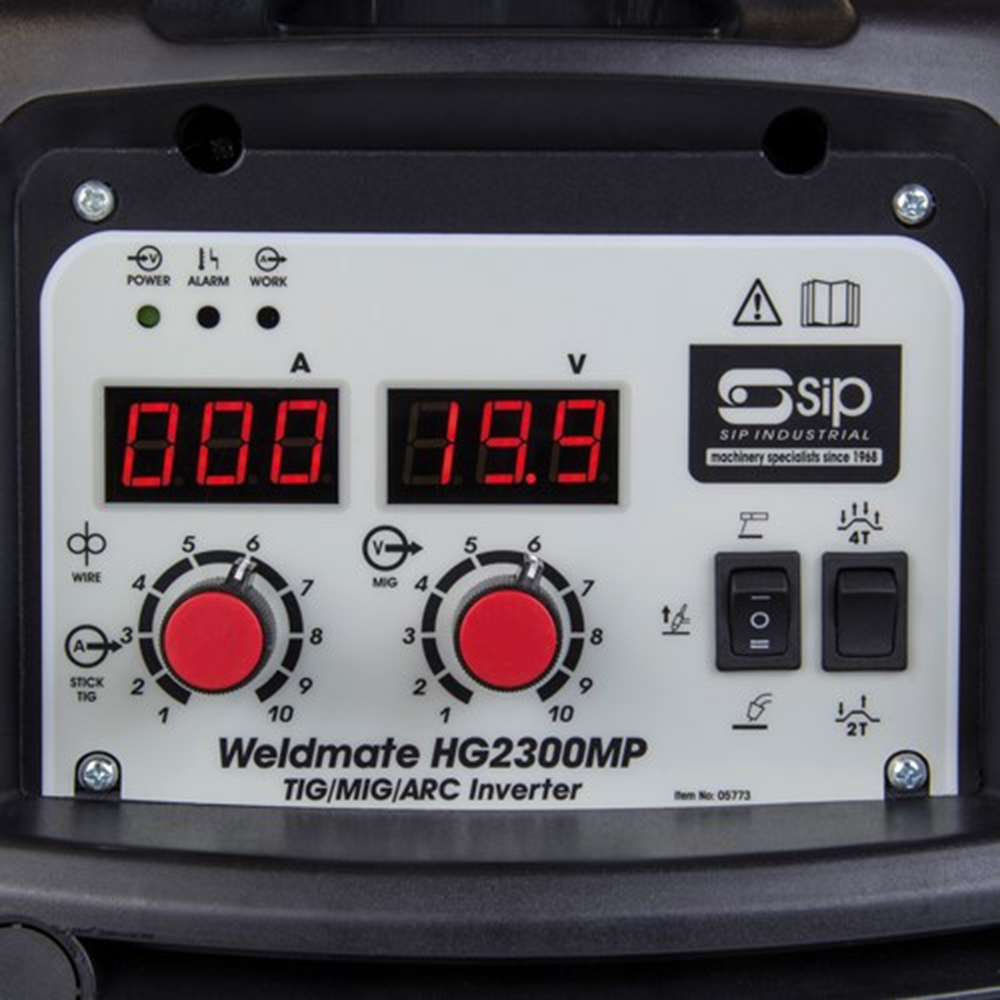

Easy-to-read dual digital displays
0.6 - 1.0mm wire size tolerance
1.6 - 4.0mm max. electrode size
Rugged lightweight construction
Built-in IGBT inverter technology
Extra-low current performance
Technical Description:
Input Supply 230v (16amp)
Process MIG
Output Volts 15.5v to 24.0v
Output Current 30 - 200amps
Duty Cycle 200amps @ 50%
Process TIG
Output Volts 10.8v to 18.0v
Output Current 20 - 200amps
Duty Cycle 200amps @ 50%
Process MMA
Output Volts 21.2v to 26.8v
Output Current 30 - 170amps
Duty Cycle 170amps @ 50%
Wire Size 0.6mm - 1.0mm
Electrode ∅ 1.6mm - 4.0mm
Insulation Class H
Protection IP21S
Gross Weight 14.5kg
Packaged Dimensions 585 x 330 x 485mm

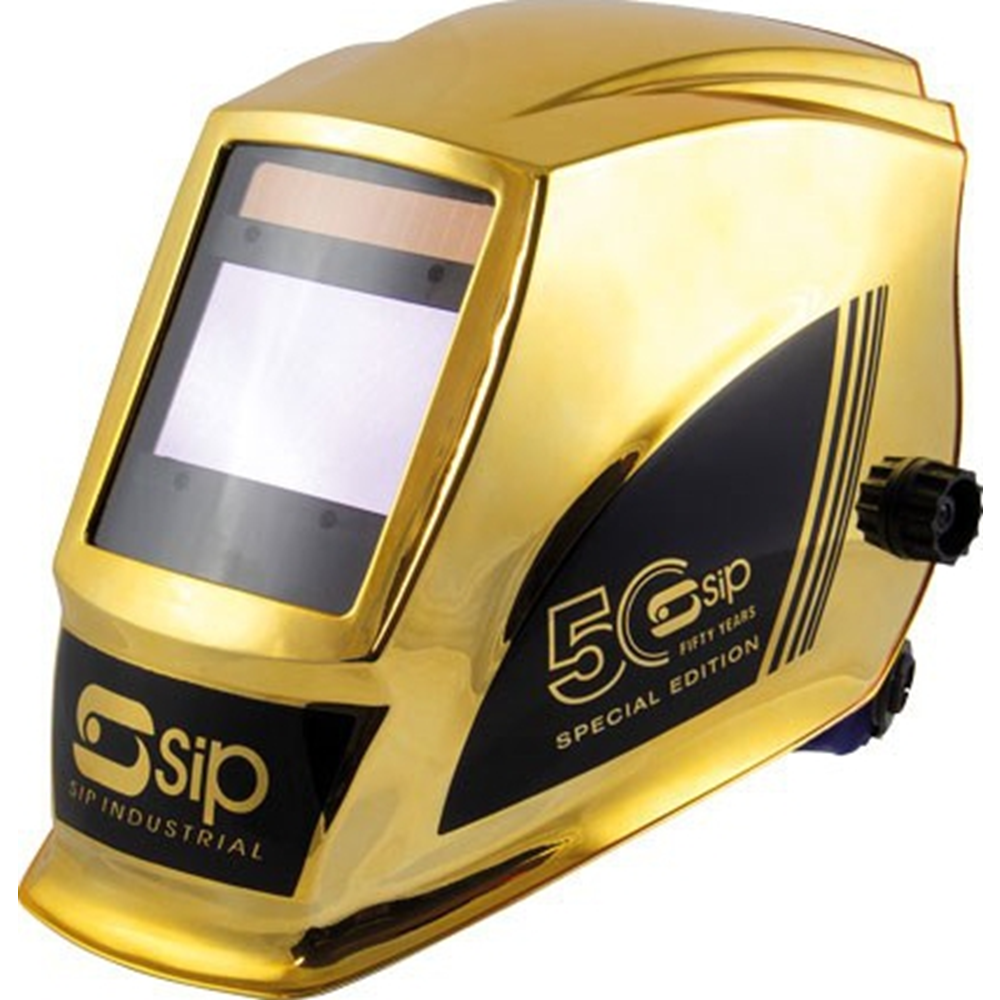

SIP 50th Edition Electronic Welding Headshield
This Meteor 2300F gold welding headshield is a Special Edition product in celebration of our 50th anniversary!
It boasts a quick light-to-dark response time, for added reliability and protection.
Striking 50th Anniversary gold design
Adjustable welding shade control settings:
4 SHADE for grinding tasks
9 - 13 SHADE for ARC/MIG/TIG
5 - 9 SHADE for plasma cutting
1/10,000sec light-to-dark response, 4 sensors
Test button checks electronic shielding functions
Solar panel and 2x CR2450 3v Lithium batteries
Adjustable padded headband for more comfort
Integrated low shield power warning light
Lightweight construction - weighs 0.5kg!
Technical Description:
Filter Size 133 x 114 x 10mm
Viewing Area 100 x 59.5mm
Outer Protection Lens 134 x 114mm
Inner Protection Lens 105 x 66mm
Grinding Shade 4 Shade
Plasma Cutting Shade 5 - 9 Shade
ARC/MIG/TIG Shade 9 - 13 Shade
Battery / Solar 2x Lithium CR2450 3v
Response Time 1/10,000 second
Delay Time 0.1 - 0.8 seconds
Operating Temperature -20°C to +65°C
Net Weight 0.5kg
Packaged Dimensions 330 x 230 x 230mm
Inverter Welder can take care of most tasks, as it boasts MIG, TIG, and ARC functions.
Hi-Tech technology and high 50% duty cycle give it high performance and reliability.
230v (16amp) input supply
MIG, TIG, and ARC triple function
Infinitely variable weld output settings
30amp - 200amp MIG output current
20amp - 200amp TIG output current
30amp - 170amp ARC output current
High 50% duty cycle on all processes
Reliable performance in gas/gasless
Easy-to-read dual digital displays
0.6 - 1.0mm wire size tolerance
1.6 - 4.0mm max. electrode size
Rugged lightweight construction
Built-in IGBT inverter technology
Extra-low current performance
Technical Description:
Input Supply 230v (16amp)
Process MIG
Output Volts 15.5v to 24.0v
Output Current 30 - 200amps
Duty Cycle 200amps @ 50%
Process TIG
Output Volts 10.8v to 18.0v
Output Current 20 - 200amps
Duty Cycle 200amps @ 50%
Process MMA
Output Volts 21.2v to 26.8v
Output Current 30 - 170amps
Duty Cycle 170amps @ 50%
Wire Size 0.6mm - 1.0mm
Electrode ∅ 1.6mm - 4.0mm
Insulation Class H
Protection IP21S
Gross Weight 14.5kg
Packaged Dimensions 585 x 330 x 485mm
SIP 50th Edition Electronic Welding Headshield
This Meteor 2300F gold welding headshield is a Special Edition product in celebration of our 50th anniversary!
It boasts a quick light-to-dark response time, for added reliability and protection.
Striking 50th Anniversary gold design
Adjustable welding shade control settings:
4 SHADE for grinding tasks
9 - 13 SHADE for ARC/MIG/TIG
5 - 9 SHADE for plasma cutting
1/10,000sec light-to-dark response, 4 sensors
Test button checks electronic shielding functions
Solar panel and 2x CR2450 3v Lithium batteries
Adjustable padded headband for more comfort
Integrated low shield power warning light
Lightweight construction - weighs 0.5kg!
Technical Description:
Filter Size 133 x 114 x 10mm
Viewing Area 100 x 59.5mm
Outer Protection Lens 134 x 114mm
Inner Protection Lens 105 x 66mm
Grinding Shade 4 Shade
Plasma Cutting Shade 5 - 9 Shade
ARC/MIG/TIG Shade 9 - 13 Shade
Battery / Solar 2x Lithium CR2450 3v
Response Time 1/10,000 second
Delay Time 0.1 - 0.8 seconds
Operating Temperature -20°C to +65°C
Net Weight 0.5kg
Packaged Dimensions 330 x 230 x 230mm
Product Specifications
| L&S Part No. | 845 5773WS19 |
|---|---|
| Manufacturer | SIP Industrial Products |
| OEM No. | 05773WS19 |
| Unit of Sale | 1 |
