Description

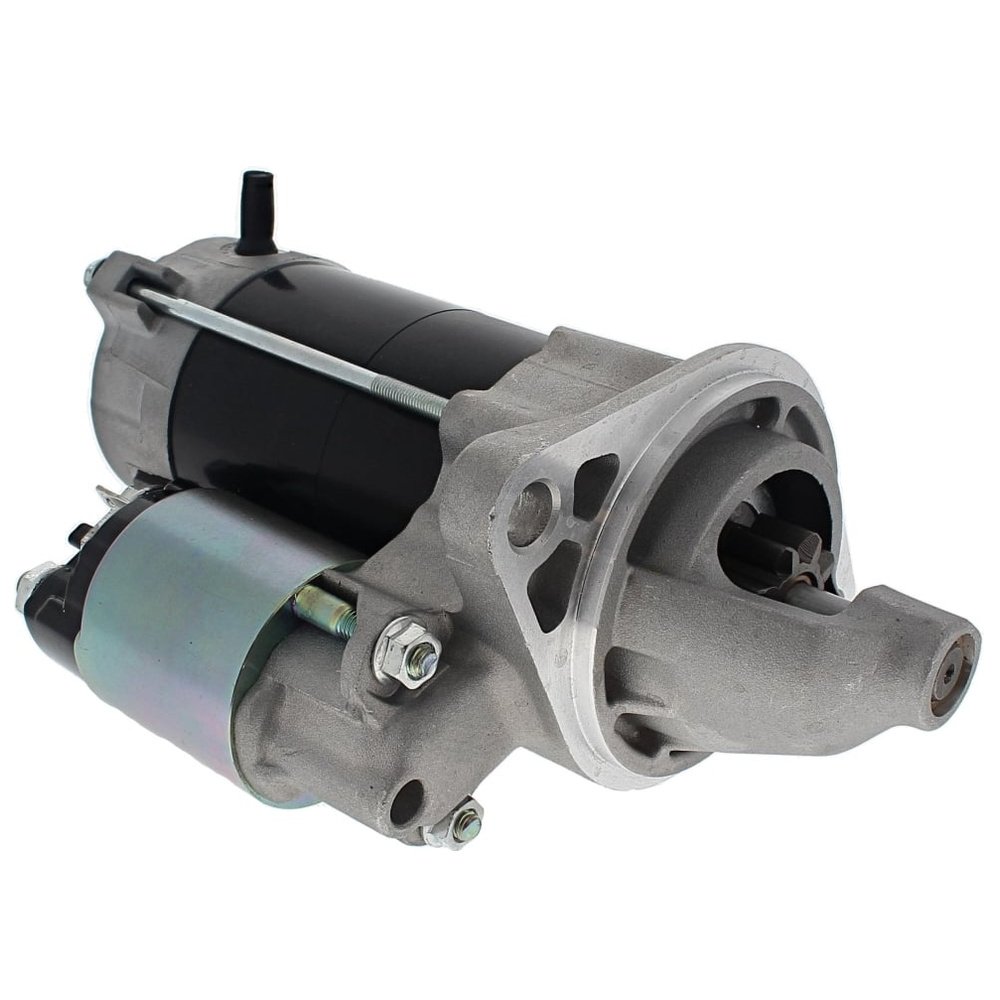

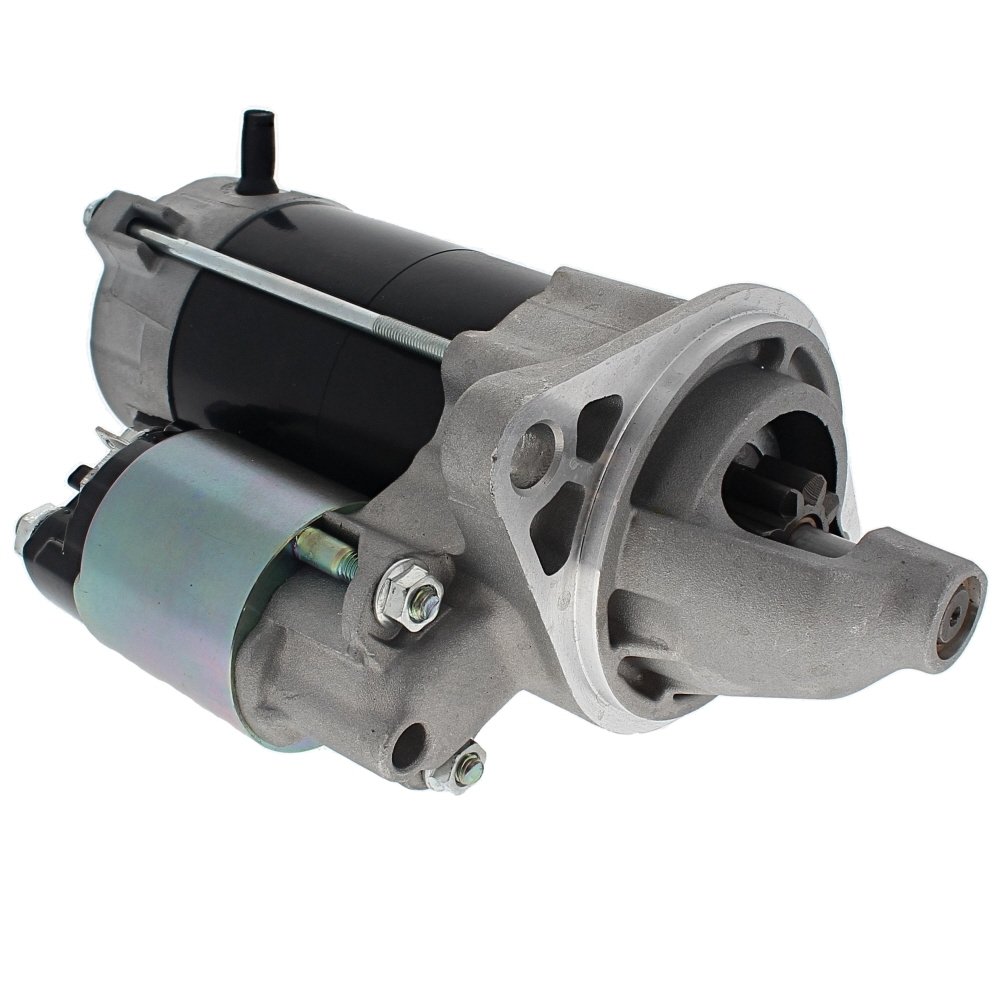

Starter Motor to fit Yanmar SV15 Mini Excavator
Quality, Non Genuine Part
Replaces OEM No. 119515-77010, 119717-77010
Suitable for the Following Engine:
3TNV70 , 3TNV76-KWA
Specifications:
Voltage 12, kW 1.1
No./teeth 9
Rotation CW
Gear type GR
Mount. flange 80.00
B+ M8
No./mount. holes 2 (0)
Drive dist. 21.00
Mount. hole 1 mm 11.00
Mount. hole 2 mm 11.00
Dist./back 149.00
Dist./front 54.00
Dist. mm 120.00
Quality, Non Genuine Part
Replaces OEM No. 119515-77010, 119717-77010
Suitable for the Following Engine:
3TNV70 , 3TNV76-KWA
Specifications:
Voltage 12, kW 1.1
No./teeth 9
Rotation CW
Gear type GR
Mount. flange 80.00
B+ M8
No./mount. holes 2 (0)
Drive dist. 21.00
Mount. hole 1 mm 11.00
Mount. hole 2 mm 11.00
Dist./back 149.00
Dist./front 54.00
Dist. mm 120.00
Product Specifications
| L&S Part No. | 080 256 |
|---|---|
| Unit of Sale | 1 |
| Applications | Yanmar SV15, 3TNV70 , 3TNV76-KWA, Thwaites 1 Ton Dumper (MACH 201) |
| Fits Brands | Kubota, Thwaites, Yanmar |
| Machine Type | Dumpers, Excavators |
| Fits Models | SV15 |
