Description

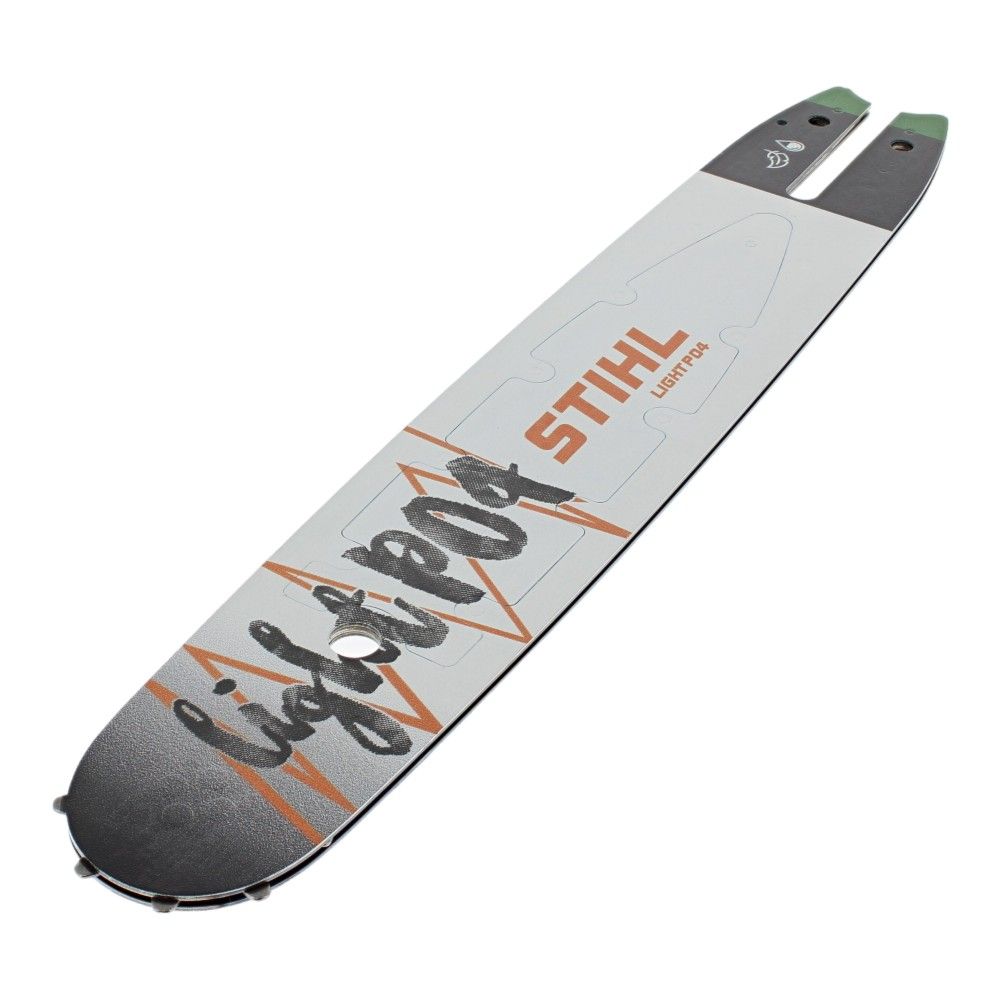

12" Rollomatic Light Guide Bar.
Genuine Stihl Parts.
OEM No. 3005 000 7405.
Suits Chains: Pitch 3/8"P, Gauge 1.3mm (.050") & Links 44.
The body of this lightweight bar is made up of three steel plates which have been largely hollowed out and electrically welded together. The open areas are electrically welded together. The open areas are filled with glass fibre reinforced polyamide. The result is a weight saving of up to 30% compared with conventional bars.
Suitable for the Following Applications:
MS 171, MS 171 C, MS 180, MS 180 C, MS 181, MS 181 C, MS 190 T, MS 191 T, MS 192 C, MS 192 T, MS 192 TC, MS 193 C, MS 193 T, MS 193 TC, MS 200, MS 200 T, MS 201, MS 201 C, MS 201 T, MS 201 TC, MS 201, MS 201 C, MS 201 T, MS 201 TC, MS 210, MS 210 C, MS 211, MS 211 C, MS 230, MS 230 C, MS 241, MS 241 C, MS 250, MS 250 C, MS 251, MS 251 C, MSA 200 C, MSE 140 C, MSE 160 C, MSE 180 C, MSE 200 C, MSE 141 C, MSE 170 C, MSE 190 C, MSE 210 C, MSE 230 C, HT 56 C, HT 70, HT 70 K, HT 75, HT 73, HT 100, HT 101, HT 102, HT 103, HT 130, HT 131, HT 132, HT 133, HT 250, HTE 60, 009, 010, 011, 012, 015, 017, 018, 019 T, 020, 020 T, 021, 023, 025, E 14, E 140, E 160, E 180 C.
Product Specifications
L&S Part No. | 3005 000 7405 |
---|---|
Part Type | Genuine Part |
Manufacturer | Stihl |
OEM No. | 30050007405 |
Unit of Sale | 1 |
Applications | MS 171, MS 171 C, MS 180, MS 180 C, MS 181, MS 181 C, MS 190 T, MS 191 T, MS 192 C, MS 192 T, MS 192 TC, MS 193 C, MS 193 T, MS 193 TC, MS 200, MS 200 T, MS 201, MS 201 C, MS 201 T, MS 201 TC, MS 210, MS 210 C, MS 211, MS 211 C, MS 230, MS 230 C, MS 241, MS 241 C, MS 250, MS 250 C, MS 251, MS 251 C, MSA 200 C, MSE 140 C, MSE 160 C, MSE 180 C, MSE 200 C, MSE 141 C, MSE 170 C, MSE 190 C, MSE 210 C, MSE 230 C, HT 56 C, HT 70, HT 70 K, HT 75, HT 73, HT 100, HT 101, HT 102, HT 103, HT 130, HT 131, HT 132, HT 133, HT 250, HTE 60, 009, 010, 011, 012, 015, 017, 018, 019 T, 020, 020 T, 021, 023, 025, E 14, E 140, E 160, E 180 C. |
Fits Brands | Stihl |
Machine Type | Chainsaws |
Fits Models | HT70, HT70K, HT75 | HT73 | HT130 | HT131 | HTE60 | HT-KM Pole Pruner | MS180, MS180C | MS230, MS230C | MS250, MS250C | MS200, MS200T | MS192C, MS192T, MS192TC | MS171, MS171C | MS181, MS181C | 009 | MS201, MS201C, MS201T, MS201TC | 010, 011 | 012 | 015 | 017 | 018 | 019T | 020, 020T | 021, 023, 025 | MS231, MS251 | MS241C | E14 | E140, E160, E180 | MSE140, MSE160, MSE180, MSE200 | MSE141 C | MSE170, MSE190, MSE210, MSE230 | MSA200 C | HT56 C | HT100 | HT102, HT103 | HT132, HT133 | MS190T | MS191T | MS193C, MS193T, MS193TC |
