Description

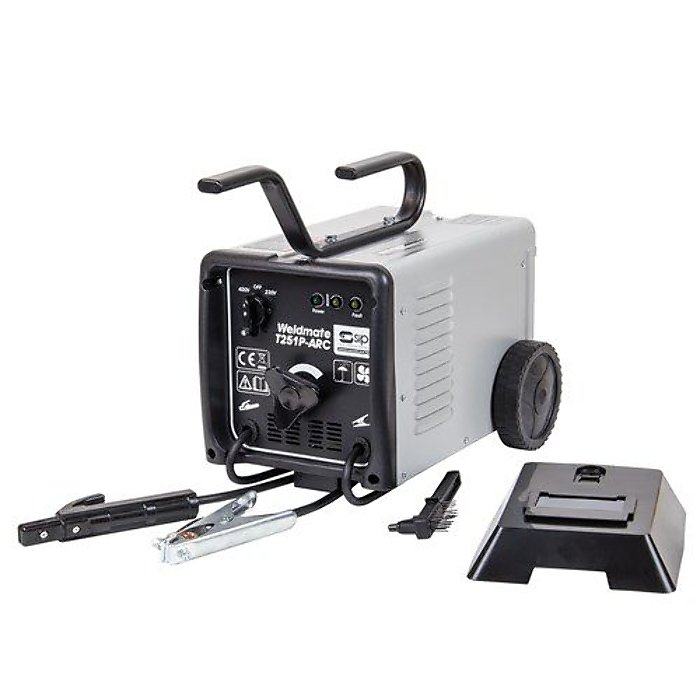

SIP T251P-ARC Transformer Welder
230v (20amp) / 400v (10amp) supply
Infinitely variable, step-less power output
85amps - 250amps (peak) current range
2.5mm - 5.0mm maximum electrode size
2.0mm - 9.0mm weld thickness (mild steel)
Wheel mounted for versatility and movement
Electrode-to-power gauge - rapid settings
Supplied with following accessories:
Handheld face shield, chipping hammer
2.0 metre cable w/ electrode holder
2.0 metre Earth cable and clamp
This ARC welder has an infinitely variable step-less output, giving superb versatility, plus an electrode to power gauge, which enables rapid setting of output current.
Construction TRANSFORMER
Input Supply 230v (20amp) - 400v (10amp)
Output Current 85 - 200amps (AC)
Peak Current 250amps
Open Circuit Voltage 50.0v
Duty Cycle 200amps @ 10%
Electrode ∅ 2.5mm - 5.0mm
Weld Thickness 2.0mm - 9.0mm
Power Factor 0.6
Efficiency 45%
Insulation Class F
Protection IP21S
Packaged Dimensions 325 x 285 x 515mm
Additional Infinitely variable
230v (20amp) / 400v (10amp) supply
Infinitely variable, step-less power output
85amps - 250amps (peak) current range
2.5mm - 5.0mm maximum electrode size
2.0mm - 9.0mm weld thickness (mild steel)
Wheel mounted for versatility and movement
Electrode-to-power gauge - rapid settings
Supplied with following accessories:
Handheld face shield, chipping hammer
2.0 metre cable w/ electrode holder
2.0 metre Earth cable and clamp
This ARC welder has an infinitely variable step-less output, giving superb versatility, plus an electrode to power gauge, which enables rapid setting of output current.
Construction TRANSFORMER
Input Supply 230v (20amp) - 400v (10amp)
Output Current 85 - 200amps (AC)
Peak Current 250amps
Open Circuit Voltage 50.0v
Duty Cycle 200amps @ 10%
Electrode ∅ 2.5mm - 5.0mm
Weld Thickness 2.0mm - 9.0mm
Power Factor 0.6
Efficiency 45%
Insulation Class F
Protection IP21S
Packaged Dimensions 325 x 285 x 515mm
Additional Infinitely variable
Product Specifications
| L&S Part No. | 845 5725 |
|---|---|
| Manufacturer | SIP Industrial Products |
| OEM No. | 05725 |
| Unit of Sale | 1 |
