Description

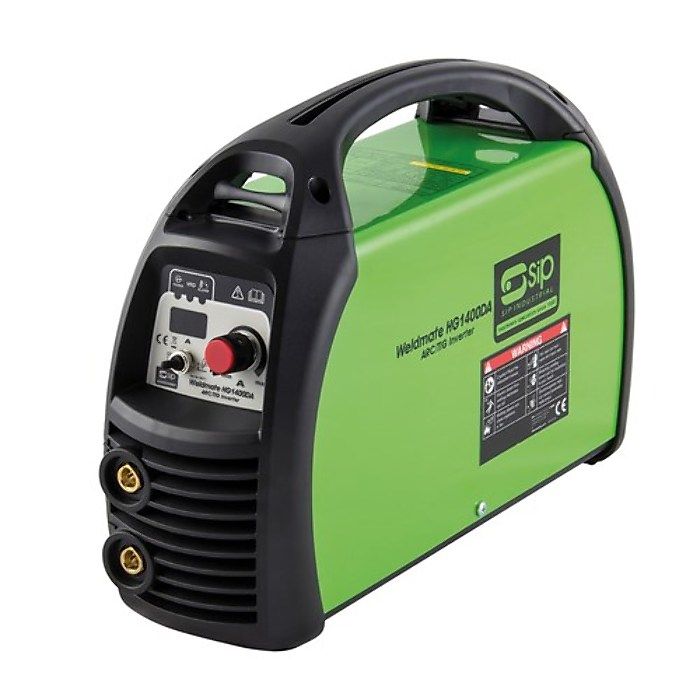

These multi-functional ARC/TIG Inverters from SIP are equipped with a Voltage Reduction Device, Lift-TIG start function, anti-stick circuitry and dinse sockets.
230v (13amp) supply
140amps @ 60% duty cycle
20amps - 140amps (peak) current range
1.5mm - 7.0mm weld thickness (mild steel)
1.6mm - 3.2mm max. electrode size
Lightweight - weighs only 4.5kg!
VRD - Voltage Reduction Device
Thermal overload protection
Lift-TIG function included
Handy anti-stick circuitry
Very generator friendly
Supplied with accessories.
2.0 metre electrode lead
2.0 metre Earth lead
Technical Description:
Construction INVERTER
Input Supply 230v (13amp)
Output Current 20amps - 140amps
Open Circuit Voltage 69.0v
Duty Cycle 140amps @ 60%
Electrode ∅ 1.6mm - 3.2mm
Weld Thickness 1.5mm - 7.0mm
Power Factor 0.75
Efficiency 85%
Insulation Class H
Protection IP21S
Gross Weight 4.5kg
Packaged Dimensions 310 x 210 x 440mm
Additional 2 year warranty
230v (13amp) supply
140amps @ 60% duty cycle
20amps - 140amps (peak) current range
1.5mm - 7.0mm weld thickness (mild steel)
1.6mm - 3.2mm max. electrode size
Lightweight - weighs only 4.5kg!
VRD - Voltage Reduction Device
Thermal overload protection
Lift-TIG function included
Handy anti-stick circuitry
Very generator friendly
Supplied with accessories.
2.0 metre electrode lead
2.0 metre Earth lead
Technical Description:
Construction INVERTER
Input Supply 230v (13amp)
Output Current 20amps - 140amps
Open Circuit Voltage 69.0v
Duty Cycle 140amps @ 60%
Electrode ∅ 1.6mm - 3.2mm
Weld Thickness 1.5mm - 7.0mm
Power Factor 0.75
Efficiency 85%
Insulation Class H
Protection IP21S
Gross Weight 4.5kg
Packaged Dimensions 310 x 210 x 440mm
Additional 2 year warranty
Product Specifications
| L&S Part No. | 845 5711 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | SIP Industrial Products |
| OEM No. | 05711 |
| Unit of Sale | 1 |
| Size | 310 x 210 x 440mm |
